Asturmadi Security
60 C5 / 90 C5
Security and Trust
The SECURITY fire door combines fire protection with enhanced access control, thanks to a three-point anchor guaranteeing optimal security.
Avantages
- A wide range of standard sizes, available in two heights to optimize project savings, while ensuring high quality at a competitive price.
- Special measurements to adapt to all needs.
- Thermal insulation coefficient 1.2 (W/m2k)
- Higher torsional rigidity of the leaf compared to a traditional assembly.
- Highly durable and corrosion-resistant sheet metal and paint.
- Open frame for easy installation.
- Excellent standard equipment.
- Wide variety of additional accessories available.
- Tested to over 200,000 opening and closing cycles.
- Door and frame tested as a whole.
Certificates
- Fire resistance of 60/90 and 120 minutes according to EN 1634-1
- C5 durability certificate according to EN 14600
- ISO 9001 certified
Leaf
- Galvanized steel sheet between 0.7 and 0.9 mm thick, assembled using a roll forming machine by double folding and stitching.
- Rock wool insulation, density 145/180 kg/m3.
- Galvanized steel stiffener.
- Anti-lift steel bolt, hexagonal, 14×36 mm, zinc-plated.
- Door thickness: 53 mm
- Lower part prepared for the installation of Guillotine.
Frame
- Steel with reduced thermal conductivity, 1.5 mm thickness.
- Jambs and lintels made of the special Z-shaped ASTURMADI profile.
- 230 x 1.5 mm cold-rolled steel mounting brackets, specially designed for various types of partitions.
- Available in wall-hugging frame configuration.
- Telescopic insert available, adjustable to the width of the septum.
Finishes
- Sheet metal painted with thermosetting epoxy powder.
- 100 micron paint layer on the door leaf and 120 micron paint layer on the frame.
- Standard color: RAL 7038 gray.
- White color: RAL 9010 at no additional cost.
- ANTIBACTERIAL paint (silver nitrate additive) available.
- Complete RAL colour chart
Accessories

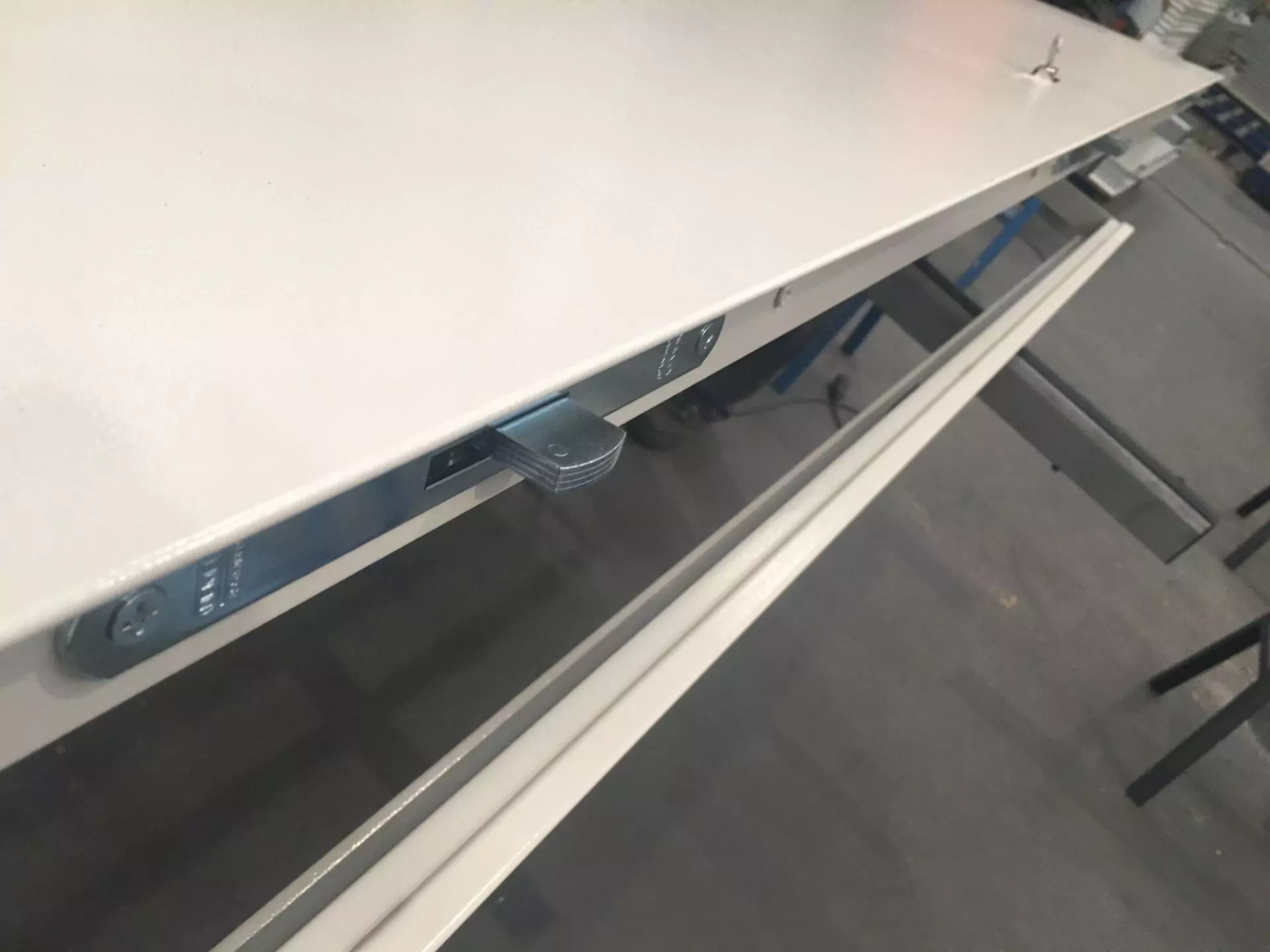

3-point lock.
Brass bulbs, 40 x 40 with 3 keys.
CF Model Nylon anti-snag handle with fusion-lined steel core.
Anti-lever bolt.
3 mm thick steel hinges fixed to the leaf with zinc-plated M6X16 screws, and to the frame by welding, the lower hinge being semi-automatic locking torsion hinge.
Graphite intumescent gasket 15 x 2 mm. Dilates 25 times its size Tª > 150ºC.
Products
We offer a wide range of customization, safe, high-quality products adapted to international markets and regulations.
